Elevator integrated controller

Product Name : Elevator Controller
■ Distance-based direct travel ride, N curves generated automatically
■ Group control algorithm of less than eight elevators
■ Multi-CPU redundancy control and integration of advanced CANbus, Modbus, and Internet.

INQUIRY

19010英文+最新-SC_A00（19010XXX《NICE3000new电梯一体化控制器用户手册》20180410

Description

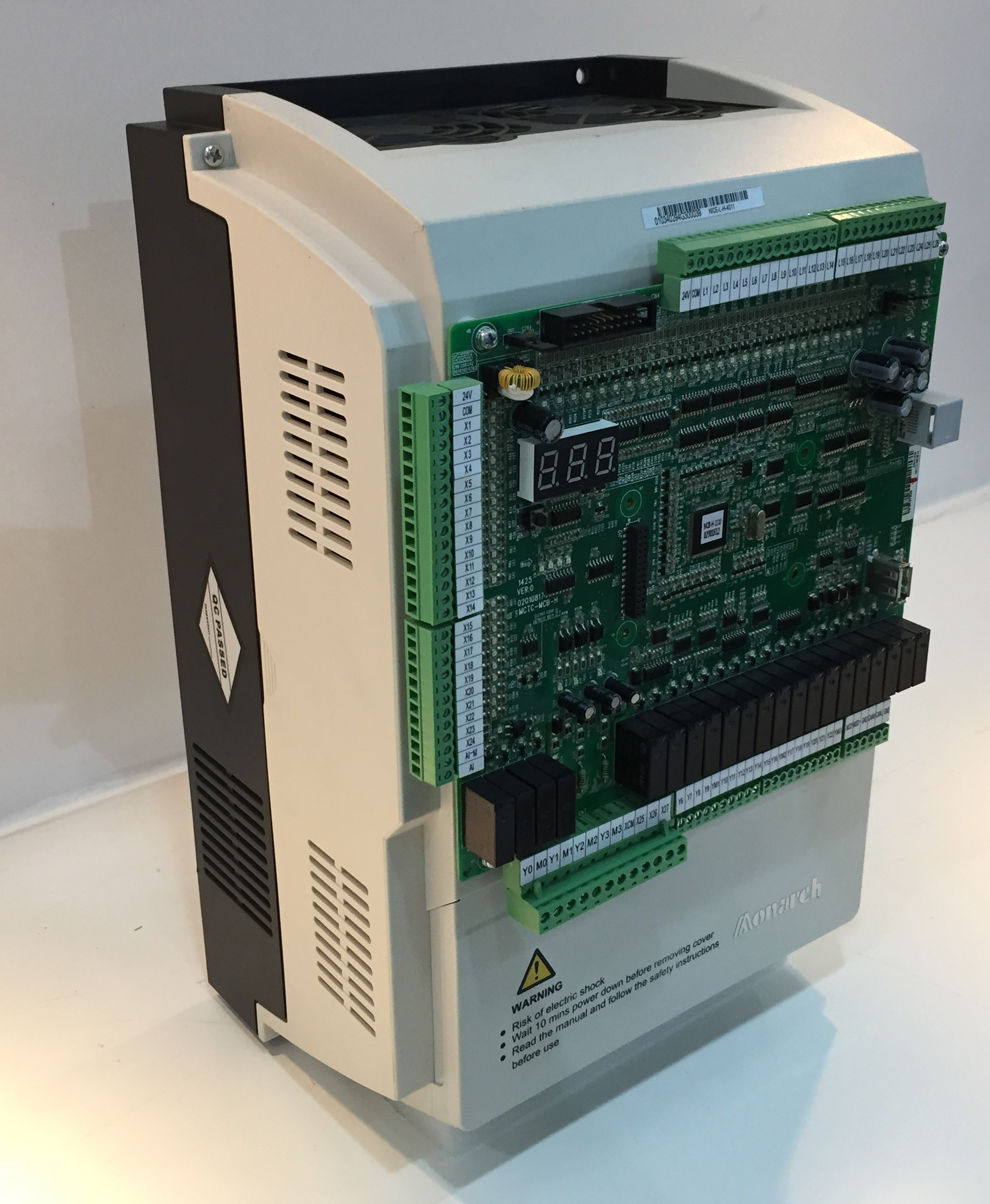

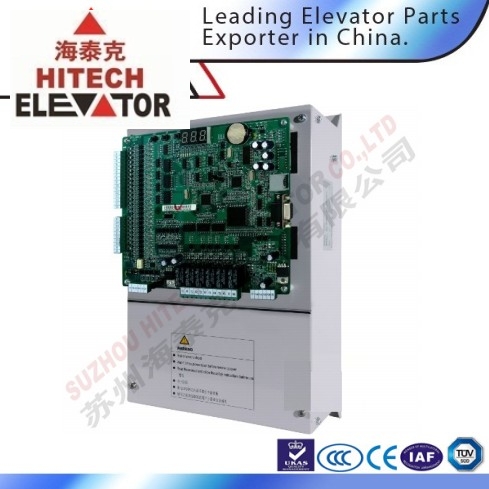

Nice3000 series of integrated controllers for elevators was independently developed and manufactured by MCTC, organically combining elevator control and motor drive to Create a new generation of intelligent, vector integrated controllers for elevators.

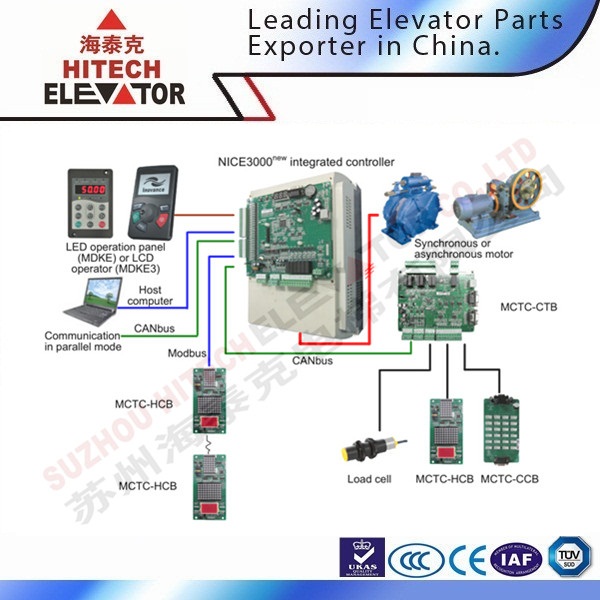

Nice 3000 control system mainly includes a Nice 3000 integrated controller for elevators, a carriage control board (MCTC-CTB-A), a display control board (MCTC-HCB-H), a carriage command board (MCTC-CCB-B).

Model	Capacity(kVA)	Input current(A)	Output current(A)	Adoptable motor(kW)
Single phase 220V, range-15%~20%
NICE-L-A/B-2002	2.3	13.2	5.2	1.1
NICE-L-A/B-2003	3.4	17	7.5	1.5
220-NICE-L-A/B-4007	9.8	29	10.3	5.5
220-NICE-L-A/B-4011	12.1	36	15.5	7.5
220-NICE-L-A/B-4015	13.9	41	19	11
220-NICE-L-A/B-4018	17.3	49.5	22.5	15
220-NICE-L-A/B-4022	23.1	62	27.7	15
220-NICE-L-A/B-4030	33	77	34.6	22
3-phase 220V,range -15%~20%
NICE-L-A/B-2002	4	13.2	9.6	3.7
NICE-L-A/B-2003	5.9	17	14	5.5
220-NICE-L-A/B-4007	17	29	18	11
220-NICE-L-A/B-4011	21	36	27	15
220-NICE-L-A/B-4015	24	41	33	22
220-NICE-L-A/B-4018	30	49.5	39	22
220-NICE-L-A/B-4022	40	62	48	22
220-NICE-L-A/B-4030	57	77	60	22
3-phase 380V,range -15%~20%
NICE-L-A/B-4002	4	6.5	5.1	2.2
NICE-L-A/B-4003	5.9	10.5	9	3.7
NICE-L-A/B-4005
