1.integrated controller communication mode serial/parallel selective.
2.outer singal communication connects with AMP connector/terminal.
3.Max.serial communication:40 floors, 8m/s speed, 8-lift group control.
4.Max.parallel communication:8 floors, 1m/s, single lift. multiple floor display modes are available for your selection.
5.power ranges from 2.2KW to 30KW.

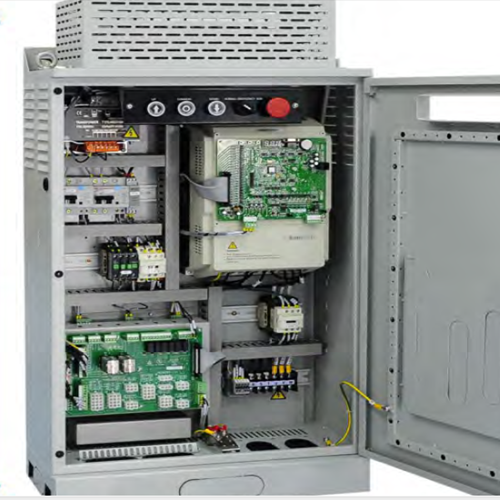

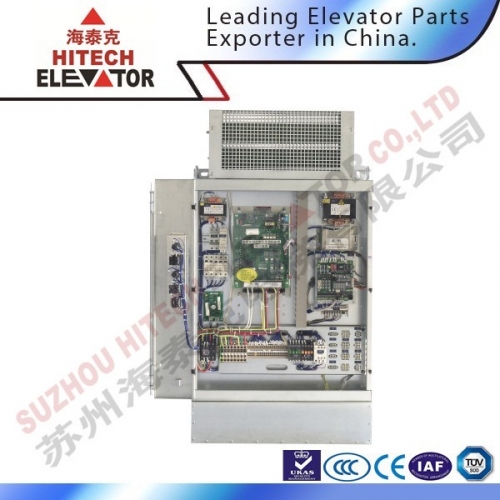

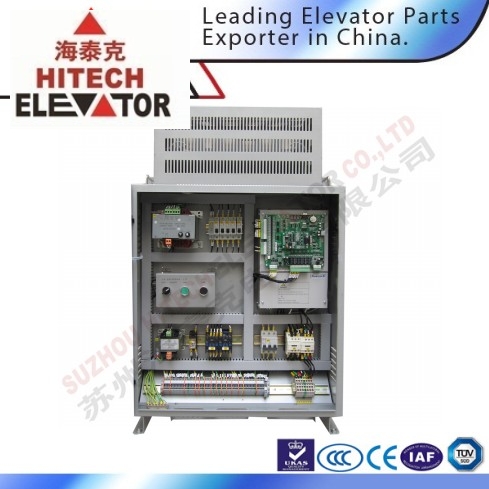

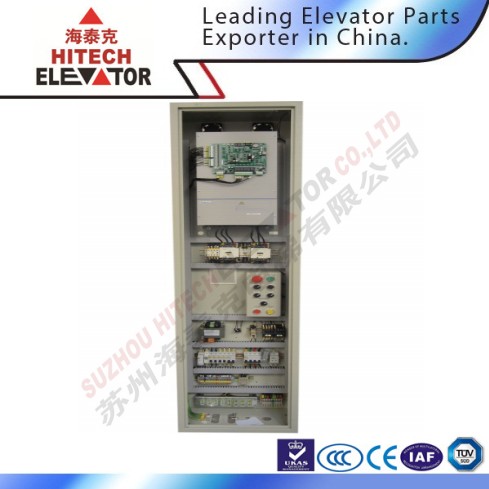

Elevator control cabinet,elevator controller
♦Small machine room lift control cabinet
♦Machine roomless lift control cabinet
♦Standard control cabinet
♦Traction type home lift control cabinet
♦Integrated escalator control cabinet
♦Four-quadart integrated control cabinet
♦Universal box of escalator energy-saving
♦Energy-saving feedback device

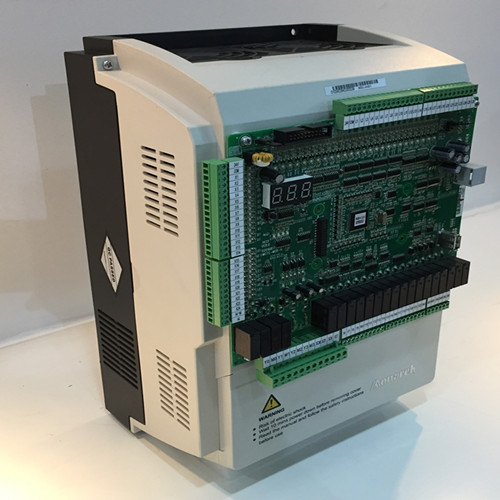

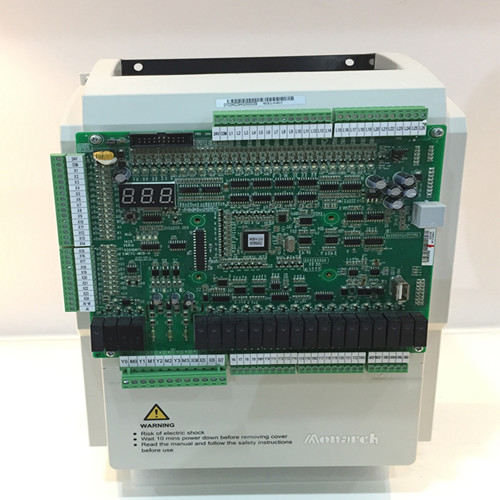

NICE3000new integrated elevator controller is a world-leading intelligent control system
that integrates computer, automatic control, network communication, and motor vector
■ Distance-based direct travel ride, N curves generated automatically
■ Group control algorithm of less than eight elevators based on the fuzzy control .
■ Multi-CPU redundancy control and integration of advanced CANbus, Modbus, and
Internet of Things communication technologies
■ Built-in real-time clock, which provides time-based services, facilitating intelligent floor
■ Flexible emergency rescue running scheme
■ Automatic identification running of short floor
■ Unintended car movement protection (UCMP) and braking force detection function
■ Multiple security protections, compliant with the GB7588-2003 standard
■ Fault tolerant design of hardware and software; multi-class fault processing;
minimization of accidents including over travel bottom terminal and over travel top
terminal to ensure safe running
■ Professional drive manufacturing technology and strong environmental adaptability; full
resistance to power grid fluctuation, dust, high temperature, and thunder.
■ Two-chip controlled running and brake, STO function
Package Size: L:50CM W:25CM H1.2M
