Elevator Speed Governor/OX240E

Elevator Speed Governor/OX240E

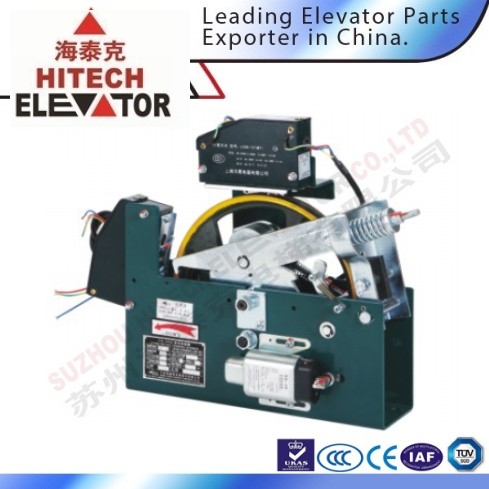

Product name : Elevator Speed Governor/OX240E


   If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, and stop the car, playing the role of descending over-speed protection.

If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car. If the car doesn’t stop due to some reason, the electrical switch will be operated to enable the electronic rope clamp, so as to control the over-speed protection on the elevator car. The remote automatic reset is available.

The electromagnet switch can be used to detect the actuation of the speed governor, and detect the elevator.


Technical Parameter:
Rated speed:≤ 0.63m/s
Wire rope diameter(mm): Φ6,Φ6.3,Φ8
Sheave diameter(mm): Φ240
Tension force:≥1000N
Super switch voltage grade:AC220V/DC24V
Switch voltage grade:AC220V/DC24V
Action magnet voltage grade:AC220V/DC24V
Performace Standard : GB7588-2003,EN81-1:1998

product pictures.jpg

packing and shipment.jpg

Porducts can be packed in wooden cases and carton box
