Rail Clip

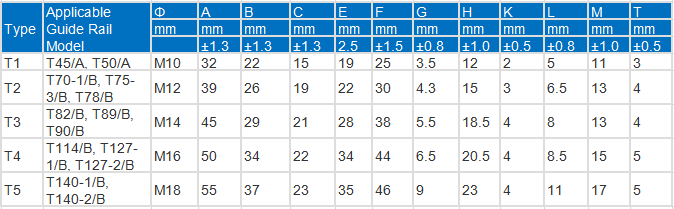

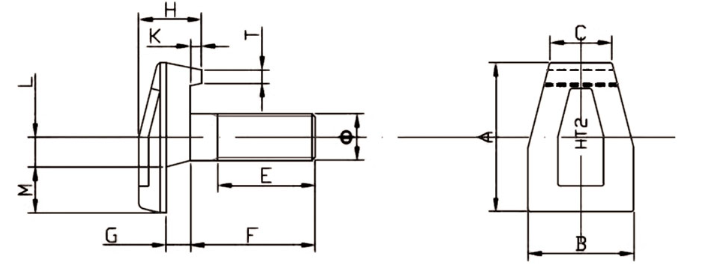

T TYPE FORGED RAIL CLIP



① Material: 45# Steel

② Standard: DIN558, DIN125


Note: T-Type forged clips are made exactly according to customers' design, which are suitable for T45/A to T140 Rail etc. Each full set of T type clips include four parts: T Bolt, Nut, Plain Washer and Lock Washer, and its finish options include plain (self colored), galvanized or zinc plated. Product threading can be offered in UNC, UNF or metric.

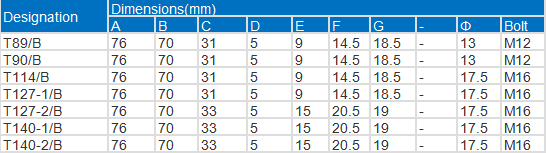

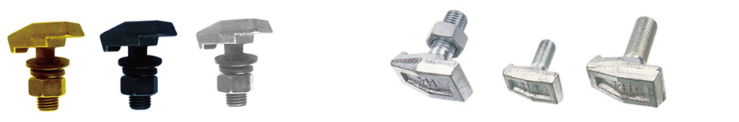

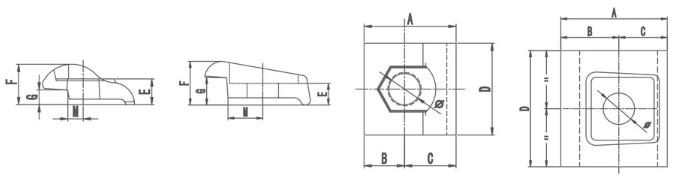

FORGED(CASTING) RAIL CLIP

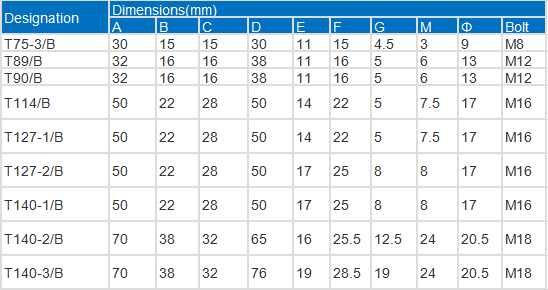

SLIDING RAIL CLIP
