Home Elevator: 320kgs, 0.4 m/s, 5/5/5,
Floor Name: G,1,2,3,,4Machine Room Roping: 2:1.
Shaft size: (W): 1750mm width X 1350mm Depth Overhead:4000mm Pit: 800mm.
Floor Distance 1:3500mm All Door Panel : Hairline stainless steelCabin:900W*1000D*2300H
See Specification.H.S.S TypeDoor open size: 800mm(W)×2100mm(H), Two panels Center OpeningSimplex Mode

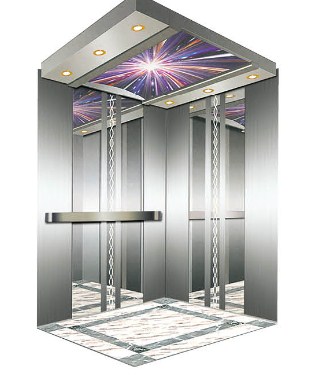

Detailed Specifications:Cabin Hairline Stainless Steel (304),1.2mm thickness
Provided (On the Rear panel),Round TypeDecorative Celling (See Specification)LOP with LCD Display

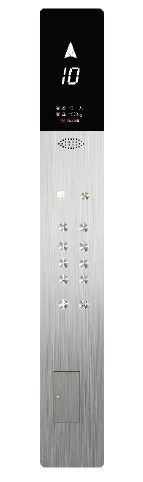

H,S,S Type with Box H.S.S COP with Back BoxMonarch Control system
Input power supply: AC220V, 1PH, 50HZ.Gearless Traction Machine with ARD.Floor: PVC
