Passenger Elevator: 450kgs, 1.0 m/s, 6/6/6, Floor Name: B,G,1,2,3,4
Machine Room Roping: 2:1.
Lift A&B Duplex Mode:Shaft size: (W): 1730(W) x 1600(D) mm. Overhead:3120mm Pit:800mm.Floor Distance :3400MM.
NOTE:Connected Wall :150MM Hairline Stainless Steel Door&Cabin. Door open size: 800mm(W)×2100mm(H),
Two panels Center Opening. Detailed Specifications: H.S.S cabin (Side) and cabin door panel (304 Thickness 1.2mm) ,
Rear Cabin :Etched Mirror Finish(See Below Photo) H.S.S round handrail 01 pcs at rear cabin panel, and H.S.S decorative ceiling. With Voice Announcer, Language:English. H.S.S COP with Dot Mattrix Display ,Sourface Mounted Type,Size:1200*200*18

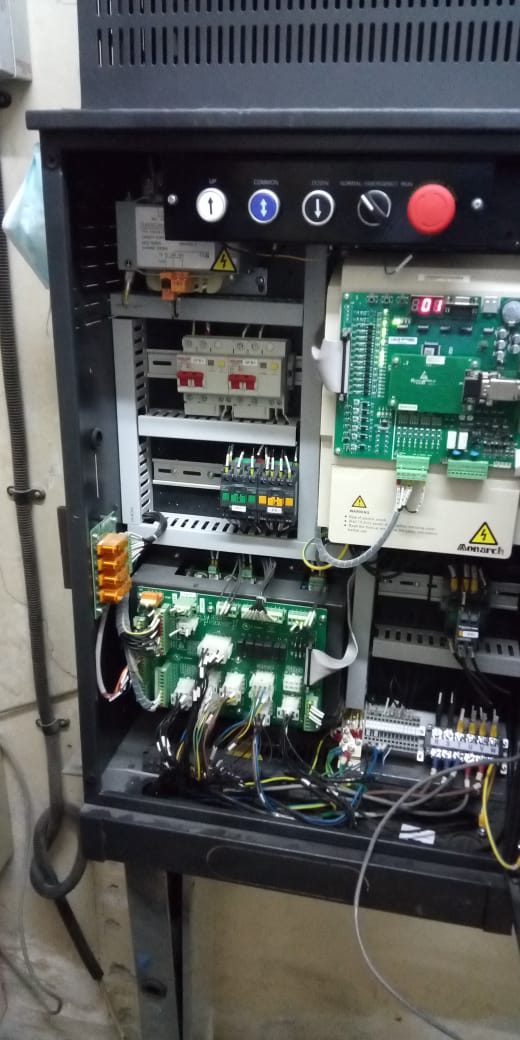

H.S.S LOP with Dot Mattrix Display Sourface Mounted Type.(Duplex Mode) Monarch Control system, Input power supply: AC380V,3 Phases 50HZ. Gearless Traction Machine with ARD. Lift Brand: Client's LOGO
NOTE:Cabin Marble flooring by client, with 25mm recess.Light Curtain with Safety Edge Device.
